DF83N | Schneider Electric
Fuse holder, 8.5 x 31.5 mm, 25 A, 400 V, DIN rail, DF83N
Unit Price (€ / pc.)
46.9098 € *
Available: 0 pcs.
Leadtime: On Request **

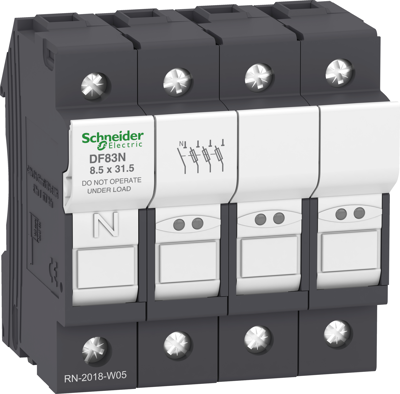

Fuse holder, DF83N, Schneider Electric
TeSys DF modular fuse carrier, 4 poles (3P+N), for protection of control circuits up to 25A/500V. To be used with 8.5x31.5mm fuse links up to 25A and short circuit current up to 20kA@400V. It provides a Neutral pole fitted with a locked tubular link. Compact (70mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals, padlockable without accessory. Fuse links (8.5x31.5mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 3 units. Multi standards certified (IEC, EAC, Marine), Green Premium product (RoHS/REACh).
Technical specifications
| Connection | screw connection | |
| Type of mounting | DIN rail | |
| For Fuse | 8.5 x 31.5 mm | |
| Rated voltage | 400 V | |
| Rated current | 25 A | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85361050 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
