DF81 | Schneider Electric

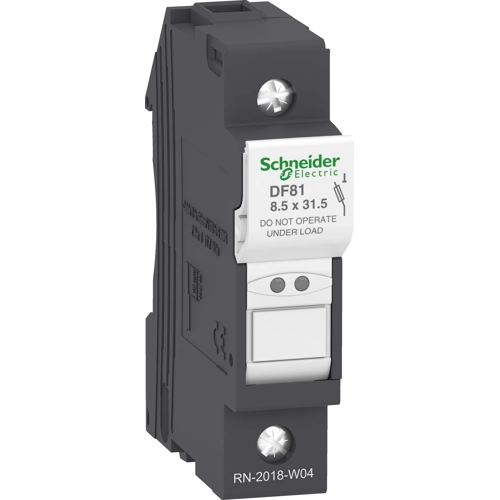

Fuse holder, 8.5 x 31.5 mm, 25 A, 400 V, DIN rail, DF81
Unit Price (€ / pc.)
12.4474 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
12.45 € *
Price list
Quantity
Price per unit*
1 pcs.
12.4474 €
3 pcs.
11.8881 €
6 pcs.
11.3883 €
12 pcs.
10.7695 €
*incl. VAT plus shipping costs
Subject to prior sale
Fuse holder, DF81, Schneider Electric
TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 25A/500V. To be used with 8.5x31.5mm fuse links up to 25A and short circuit current up to 20kA@400V. Compact (17.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (8.5x31.5mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 12 units. Multi standards certified (IEC, EAC, Marine), Green Premium product (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 25 A | |
| For Fuse | 8.5 x 31.5 mm | |
| Type of mounting | DIN rail | |
| Rated voltage | 400 V | |
| Connection | screw connection | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361050 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
