DF22N | Schneider Electric

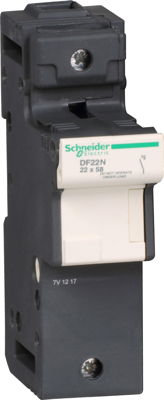

Fuse holder, 22 x 58 mm, 125 A, 690 V, DIN rail, DF22N
Unit Price (€ / pc.)
44.4346 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
44.43 € *
Price list
Quantity
Price per unit*
1 pcs.
44.4346 €
2 pcs.
42.6615 €
3 pcs.
41.0193 €
*incl. VAT plus shipping costs
Subject to prior sale
Fuse holder, DF22N, Schneider Electric
TeSys DF modular fuse carrier, 1 pole (Neutral pole), for protection of control circuits up to 125A/690V. Neutral pole for 22x58mm fuse carriers association. It provides a locked tubular link. Compact (35mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links (22x58mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, UL recognized, CSA, EAC), Green Premium product (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 125 A | |
| For Fuse | 22 x 58 mm | |
| Type of mounting | DIN rail | |
| Rated voltage | 690 V | |
| Connection | screw connection | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361090 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
