DF223NVC | Schneider Electric

Fuse holder, 22 x 58 mm, 125 A, 690 V, DIN rail, DF223NVC

Order No.: 02P5154
EAN: 4099889126259
MPN:
DF223NVC
DF223NVC Schneider Electric Fuse Holders

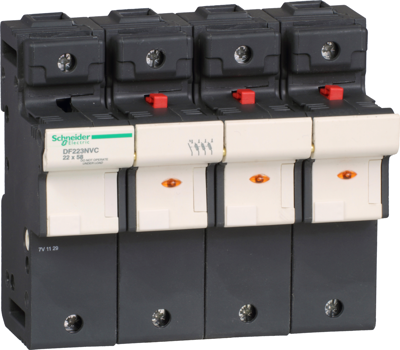

Image may differ
Unit Price (€ / pc.)
118.2741 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
118.27 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
118.2741 €

Fuse holder, DF223NVC, Schneider Electric

TeSys DF modular fuse carrier, 4 poles (3P+N), for protection of control circuits up to 125A/690V. To be used with 22x58mm fuse links with stricker up to 125A and short circuit current up to 120kA@400V. To be equipped with an early break auxiliary contact module DF22AM* (to be ordered separately), it provides a Neutral pole fitted with a locked tubular link, blown fuse indication by LED. Compact (140mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with stricker (22x58mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 1 unit. Multi standards certified (IEC, UL recognized, CSA, EAC), Green Premium product (RoHS/REACh).

Technical specifications
Degree of protection (IP) IP20
For Fuse 22 x 58 mm
Type of mounting DIN rail
Rated current 125 A
Connection screw connection
Rated voltage 690 V
Logistics
Country of origin TN
Customs tariff number 85361090
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
Sustainable Yes
