DF143C | Schneider Electric

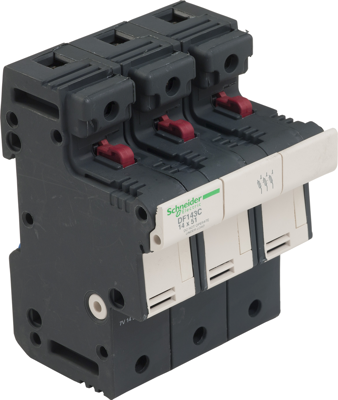

Fuse holder, 14 x 51 mm, 50 A, 690 V, DIN rail, DF143C

Order No.: 02P5138
EAN: 3389119407410
MPN:
DF143C
DF143C Schneider Electric Fuse Holders
Image may differ
Unit Price (€ / pc.)
60.8328 € *
Available in 3 Days: 6 pcs. - if ordered today
Total Price:
60.83 € *
Price list
Quantity
Price per unit*
1 pcs.
60.8328 €
2 pcs.
58.3933 €
4 pcs.
56.1561 €
*incl. VAT plus shipping costs
Subject to prior sale

Fuse holder, DF143C, Schneider Electric

TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 50A/690V. To be used with 14x51mm fuse links with stricker up to 50A and short circuit current up to 120kA@400V. To be equipped with an early break auxiliary contact module DF14AM* (to be ordered separately). Compact (79mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with striker (14x51mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 2 units. Multi standards certified (IEC, UL recognized, CSA, EAC), Green Premium product (RoHS/REACh).

Technical specifications
Filter Property Value
Type of mounting DIN rail
Degree of protection (IP) IP20
Connection screw connection
Rated current 50 A
For Fuse 14 x 51 mm
Rated voltage 690 V
Logistics
Property Value
Country of origin TN
Customs tariff number 85361050
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
Sustainable Yes
RoHS conform Yes
