DF141 | Schneider Electric

Fuse holder, 14 x 51 mm, 50 A, 690 V, DIN rail, DF141

Order No.: 02P5132
EAN: 3389119407373
MPN:
DF141

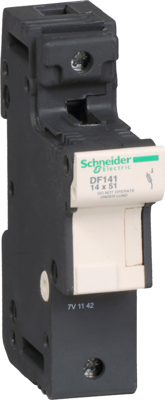

DF141 Schneider Electric Fuse Holders
Image may differ
Unit Price (€ / pc.)
22.2887 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
22.29 € *
Price list
Quantity
Price per unit*
1 pcs.
22.2887 €
2 pcs.
21.3129 €
3 pcs.
20.1467 €
6 pcs.
19.0995 €
*incl. VAT plus shipping costs
Subject to prior sale

Fuse holder, DF141, Schneider Electric

TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 50A/690V. To be used with 14x51mm fuse links up to 50A and short circuit current up to 120kA@400V. Compact (26.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links (14x51mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, UL recognized, CSA, EAC), Green Premium product (RoHS/REACh).

Technical specifications
Filter Property Value
For Fuse 14 x 51 mm
Degree of protection (IP) IP20
Rated current 50 A
Connection screw connection
Rated voltage 690 V
Type of mounting DIN rail
Logistics
Property Value
Customs tariff number 85361050
Country of origin TN
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
