DF10N | Schneider Electric

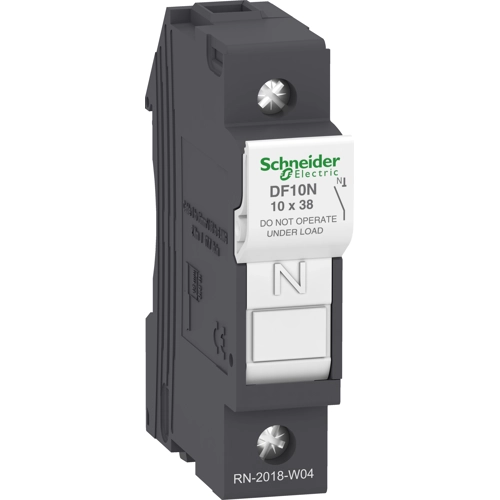

Fuse holder, 10 x 38 mm, 23 A, 690 V, DIN rail, DF10N
Unit Price (€ / pc.)
15.1606 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
15.16 € *
Price list
Quantity
Price per unit*
1 pcs.
15.1606 €
3 pcs.
14.4823 €
6 pcs.
13.8635 €
12 pcs.
13.1138 €
*incl. VAT plus shipping costs
Subject to prior sale
Fuse holder, DF10N, Schneider Electric
TeSys DF modular fuse carrier, 1 pole (Neutral pole), for protection of control circuits up to 32A/690V. Neutral pole for 10x38mm and 8.5x31.5mm fuse carriers association. It provides a locked tubular link. Compact (17.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 12 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Degree of protection (IP) | IP20 | |
| For Fuse | 10 x 38 mm | |
| Type of mounting | DIN rail | |
| Rated current | 23 A | |
| Rated voltage | 690 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361050 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
