A9D07616 | Schneider Electric

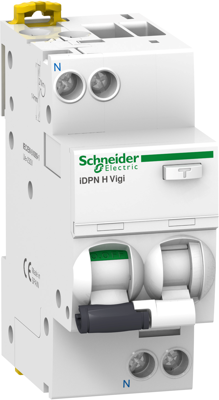

RCBO switch, 1 pole + N, 16 A, 30 mA, type A, 230 V, A9D07616
Unit Price (€ / pc.)
135.7909 € *
Available in 3 Days: 446 pcs. - if ordered today
Earth leakage circuit breaker, A9D07616, Schneider Electric
Earth-leakage circuit breaker (FI) with circuit breaker Acti 9. 16A, characteristic B, 10kA, 1P+N: 1-pole protected, 2-pole switching. Standard: VDE 0664 part 21, sensitivity: 30 mA, undelayed, type A, pulsed current sensitivity
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 1 pole + N | |
| Rated current | 16 A | |
| Rated residual current | 30 mA | |
| Fault current type | A | |
| Rated Voltage | 230 V | |
| Assembly | DIN rail | |
| Degree of protection (IP) | IP20/IP40 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | ES |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
