NSYCAG12LPH1 | Schneider Electric
Pressure reducing valve, 18.3 x 17.1 mm for Thalassa PLS, Thalassa PLM, Thalassa TBS, NSYCAG12LPH1
Unit Price (€ / pc.)
4.3792 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
4.38 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3792 €
5 pcs.
4.1769 €
10 pcs.
3.9865 €
20 pcs.
3.7723 €
30 pcs.
3.5700 €
*incl. VAT plus shipping costs
Subject to prior sale

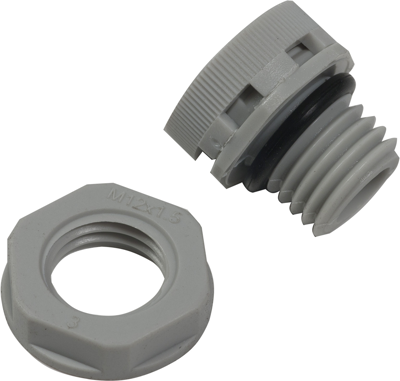

Pressure release valve, NSYCAG12LPH1, Schneider Electric
Set of 10 water resistant pressure release valve 18,3 x 17,1 mm for Thalassa PLS, Thalassa PLM, Thalassa TBS and Thalassa TBP enclosures. The product is made from PA6-V2 and membrane is made from acrilic co-polymer. The kit is made of 1 valve, the width is 18,3 mm. Cut-out diameter is 11,5 mm. Ingress protection rating (according to IEC 60529) is IP68, Fixing by screws, Flame retardance V2, Operating temperature is in the range of -40-150 °C. Pressure difference is less than 1 bar, permeability is 16 l/h. This product is qualified as a green premium, with minimal use of hazardous substances.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | pressure reducing valve | |
| Version | 18.3 x 17.1 mm | |
| Suitable for | Thalassa PLS, Thalassa PLM, Thalassa TBS |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | TR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
