R9M20 | Schneider Electric
Energy sensor, M63, 1P+N cable, connection with the Wiser Hub, (L x W x H) 43 x 18 x 16.5 mm, R9M20
Unit Price (€ / pc.)
47.8261 € *
Available in 3 Days: 7 pcs. - if ordered today
Total Price:
47.83 € *
Price list
Quantity
Price per unit*
1 pcs.
47.8261 €
3 pcs.
45.7555 €
5 pcs.
43.8634 €
*incl. VAT plus shipping costs
Subject to prior sale

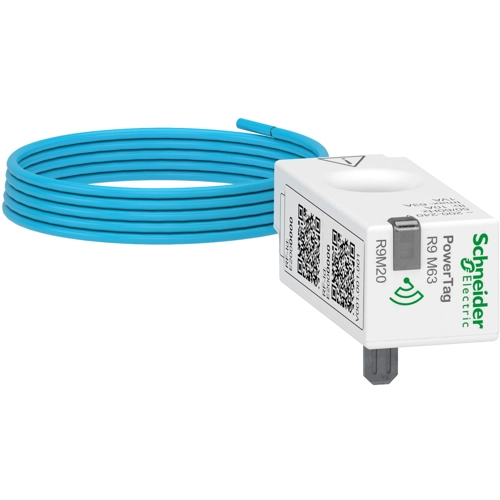

Energy sensor, R9M20, Schneider Electric
This PowerTag Energy Resi9 M63 1P+Wire is a wireless communication energy sensor. It is dedicated to Resi9 1P Monoconnect devices with 18mm pitch between phase and neutral, rating less than or equal 63 A. The neutral blue wire is to be connected to a neutral terminal block. It has to be associated with Wiser gateway to provide circuit monitoring and diagnosis down to load level. It is designed specifically for Energy Management, Load Monitoring and Power Availability applications. It incorporates accurate real-time measurements of active energy produced and consumed.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Weight | 16.4 g | |
| Version | M63, 1P+N cable, connection with the Wiser Hub | |
| Width | 18 mm | |
| Height | 16.5 mm | |
| Product type | energy sensor | |
| Length | 43 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | LV |
| Customs tariff number | 90303370 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
