A9MEM3255 | Schneider Electric
Electric meter, 3 phase, 5A, Modbus, 1E/1A, MID, (L x W x H) 90 x 69 x 95 mm, A9MEM3255
Unit Price (€ / pc.)
285.1359 € *
Available in 3 Days: 166 pcs. - if ordered today

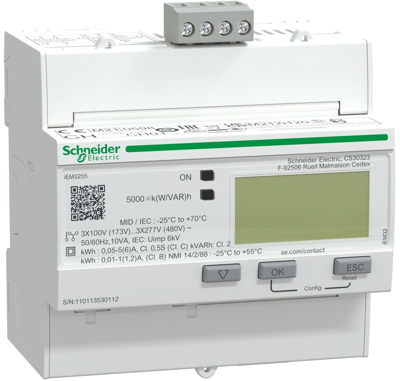

Energy meter, A9MEM3255, Schneider Electric
The A9MEM3255 offers an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Communication protocol is Modbus with screw terminal support. Compatible with power management software to take advantage of the IoT digital power installation.
Features
- Compact size of 18mm*5 modules width
- Modbus 485 communication port and digital output for remote monitoring
- Identify energy savings opportunties with precision accuracy of Class 0.5S
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 3 phase, 5A, Modbus, 1E/1A, MID | |
| Width | 69 mm | |
| Height | 95 mm | |
| Product type | energy meter | |
| Length | 90 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90283090 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
