ZA2BS834 | Schneider Electric

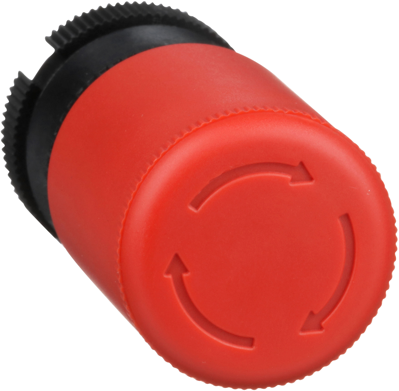

Emergency stop, rotary release, mounting Ø 30 mm, unlit, ZA2BS834
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
36.2474 € *
Available: 2 pcs.
Available in 3 Days: 73 pcs. - if ordered today
Total Price:
36.25 € *
Price list
Quantity
Price per unit*
1 pcs.
36.2474 €
5 pcs.
35.2597 €
*incl. VAT plus shipping costs
Subject to prior sale
Emergency stop operator, ZA2BS834, SCHNEIDER
The ZA2BS834 combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. Suitable for installation in harsh environment or outdoor applications due to IP65 protection rating.
Features
- Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists
- Latched emergency stop mechanism for maximum safety of operators
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Resetting | rotary release | |
| Contact function | latching | |
| illuminated | No | |
| Type of labeling | red | |
| Collar shape of the front frame | round | |
| Type of mounting | threaded ring | |
| Installation diameter | 30 mm | |
| Height | 44 mm | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
