XB7ES542P | Schneider Electric
Emergency stop, rotary release, mounting Ø 22 mm, unlit, 1 Form B (N/C), XB7ES542P
Unit Price (€ / pc.)
19.2304 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
19.23 € *
Price list
Quantity
Price per unit*
1 pcs.
19.2304 €
3 pcs.
18.3974 €
5 pcs.
17.3859 €
10 pcs.
16.4815 €
*incl. VAT plus shipping costs
Subject to prior sale

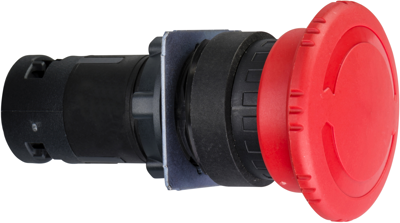

Monolithic pushbutton, XB7ES542P, SCHNEIDER
The XB7ES542P is an emergency stop mushroom head push button is part of the range diameter 22mm plastic, Harmony XB7 monolithic. It has a a circular head shape, and is supplied with a turn to release red mushroom, diameter 40mm, unmarked. It features 1 NC slow break contact and screw-clamp terminals connection type. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Resetting | rotary release | |
| Contact function | latching | |
| illuminated | No | |
| Type of labeling | red | |
| Collar shape of the front frame | round | |
| Type of mounting | panel mounting | |
| Installation diameter | 22 mm | |
| Height | 40 mm | |
| Degree of protection (IP) | IP20/IP54 | |
| Latching switching function | 1 Form B (N/C) |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | ID |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| SVHC free | Yes |
| RoHS conform | Yes |
