XB6AS9349B | Schneider Electric
Emergency stop, key unlocking, mounting Ø 16 mm, unlit, 1 Form A (N/O) + 2 Form B (N/C), XB6AS9349B
Unit Price (€ / pc.)
33.9983 € *
Standard delivery time from the manufacturer is: 1 Week

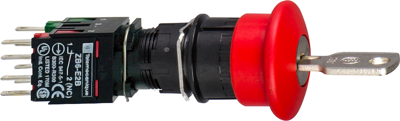

Emergency stop pushbutton, XB6AS9349B, SCHNEIDER
Red Ø30 Emergency stop pushbutton Ø16 trigger latching key release 1NO+2NC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) + 2 Form B (N/C) | |
| Height | 30 mm | |
| Degree of protection (IP) | IP65 | |
| Resetting | key unlocking | |
| illuminated | No | |
| Contact function | latching | |
| Type of labeling | red | |
| Installation diameter | 16 mm | |
| Type of mounting | panel mounting | |
| Collar shape of the front frame | round |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
