XB5AT842 | Schneider Electric

Emergency stop, pull release, mounting Ø  22 mm, unlit, 1 Form B (N/C), XB5AT842

Order No.: 05P3308
EAN: 4099889257328
MPN:
XB5AT842
Series: Harmony XB5
XB5AT842 Schneider Electric Emergency Stop
Image may differ
Unit Price (€ / pc.)
20.4085 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
20.41 € *
Price list
Quantity
Price per unit*
1 pcs.
20.4085 €
5 pcs.
19.8611 €
*incl. VAT plus shipping costs
**Subject to prior sale

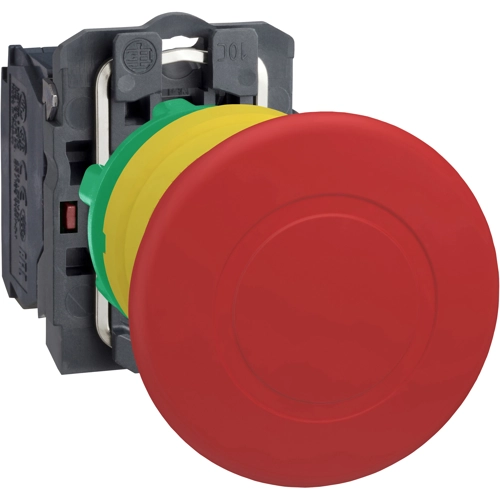

Emergency stop pushbutton, XB5AT842, SCHNEIDER

The XB5AT842 is an emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched push-pull mechanism and uses screw-clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.

Features

  • Wide modular range to suit machines and operator safety
  • Illuminated types to improve operator efficiency by reducing production downtime
  • Ergonomic design for emergency actuation in several environments
Technical specifications
Contact function latching
Resetting pull release
Installation diameter 22 mm
Degree of protection (IP) IP66/IP69K
Type of mounting panel mounting
Height 43 mm
illuminated No
Latching switching function 1 Form B (N/C)
Collar shape of the front frame round
Logistics
Country of origin CZ
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
Sustainable Yes
