XB4BS9445GEX | Schneider Electric

Emergency stop, key unlocking, mounting Ø  22 mm, unlit, 1 Form A (N/O) + 1 Form B (N/C), XB4BS9445GEX

Order No.: 27L6096
EAN: 3606489486044
MPN:
XB4BS9445GEX

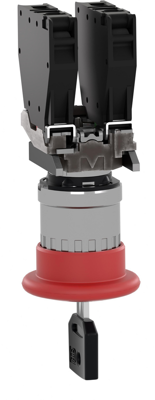

XB4BS9445GEX Schneider Electric Emergency Stop Image 1

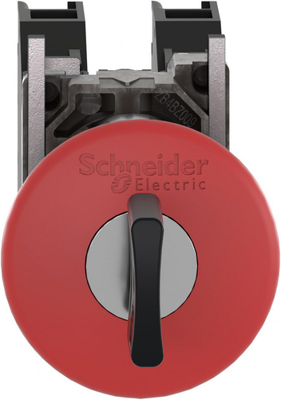

XB4BS9445GEX Schneider Electric Emergency Stop Image 2

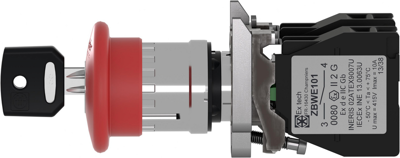

XB4BS9445GEX Schneider Electric Emergency Stop Image 3

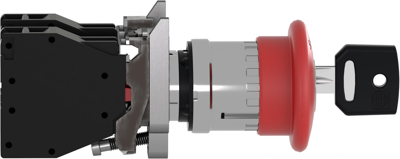

XB4BS9445GEX Schneider Electric Emergency Stop Image 4

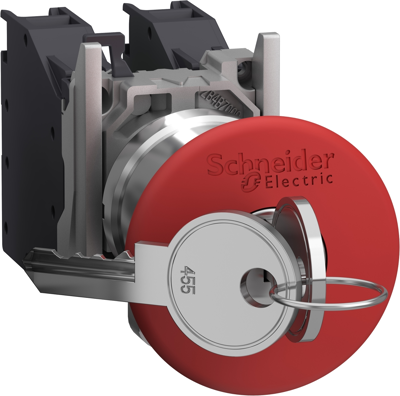

XB4BS9445GEX Schneider Electric Emergency Stop Image 5
Image may differ
Unit Price (€ / pc.)
255.2074 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
255.21 € *
Price list
Quantity
Price per unit*
1 pcs.
255.2074 €
2 pcs.
248.9837 €
*incl. VAT plus shipping costs
Subject to prior sale

Complete emergency stop push button, XB4BS9445GEX, Schneider Electric

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22 mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This emergency switching off pusbutton comes with a mushroom head and key number 455. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. It comes with trigger action and mechanical latching and key release operation. It has 1 NO and 1 NC contact with slow-break operation. This is a metal emergency stop pushbutton with a 40mm diameter mushroom head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22 mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.

Features

  • Metal bezel making it ideal for severe environments
  • Simple design for easy installation, servicing, modification and adaption
  • Compatible with standard 22 mm cutout
  • High lifetime and less maitanence
  • Easy replacement and servicing due to screw clamp connection
Technical specifications
Filter Property Value
Resetting key unlocking
Collar shape of the front frame round
Degree of protection (IP) IP65
illuminated No
Latching switching function 1 Form A (N/O) + 1 Form B (N/C)
Type of labeling red
Installation diameter 22 mm
Height 30 mm
Logistics
Property Value
Country of origin FR
Customs tariff number 85365080
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
