NSYSDR200D | Schneider Electric
DIN rail, perforated, 35 x 15 mm, W 2000 mm, steel, electrogalvanized, NSYSDR200D
Unit Price (€ / pc.)
10.0198 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
10.02 € *
Price list
Quantity
Price per unit*
1 pcs.
10.0198 €
5 pcs.
9.5676 €
10 pcs.
9.1630 €
20 pcs.
8.6632 €
*incl. VAT plus shipping costs
Subject to prior sale

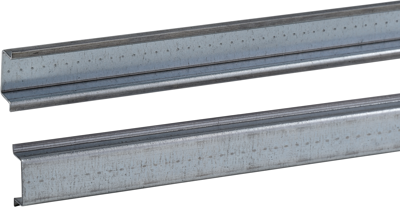

Symmetrical DIN rail, NSYSDR200D, Schneider Electric
Symmetrical perforated DIN mounting rail type A. This mounting rail is compatible with Thalassa and Spacial ranges. It is made from galvanised steel and is perforated. The dimensions are (W) 35 mm x (H) 15 mm x (L) 2000 mm and the adjustement pitch is 25 mm. The thickness of the galvanised steel is 1.5 mm. The fixing is done by fixing element and with the structure of enclosure location. This product is qualified as a green premium, with minimal use of hazardous substances.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DIN rail, perforated | |
| Width | 2000 mm | |
| Height | 35 mm | |
| Depth | 15 mm | |
| Material | steel, electrogalvanized |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ES |
| Customs tariff number | 85381000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Sustainable | Yes |
