ABL8RPS24050 | Schneider Electric
Power supply, 24 to 28.8 VDC, 5 A, 120 W, ABL8RPS24050
Unit Price (€ / pc.)
162.4112 € *
Available in 3 Days: 109 pcs. - if ordered today

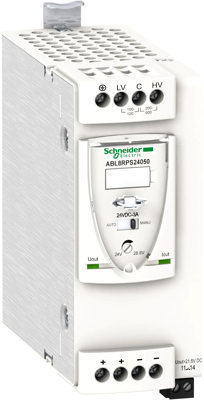

Switched Power Supply UNIVERSAL, ABL8RPS24050, Schneider Electric
The power supply is especially designed for DC voltage supply in automation applications and is characterized by its robustness. Output: 24 VDC with 5 A / 120 W - Output voltage adjustable: 24-28.8 VDC - Overload capacity: additional 50% power by boost function - Behavior in case of short circuit adjustable: manual or automatic reset - Input voltage: 100-120/200-500 VAC (50/60 Hz) - universal connection to N-L or L1-L2 - with PFC filter conform to EN61000-3-2 - diagnostic relay for undervoltage indication - 2 LEDs for status messages - metal housing for top hat rail mounting with release lever - working principle: electronic clocking
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 56 mm | |
| Degree of protection (IP) | IP20 | |
| Power | 120 W | |
| Input voltage AC | 170-550 VAC, 85-132 VAC | |
| Output current | 5 A | |
| efficiency | 87 % | |
| Number of outputs | 1 | |
| Height | 143 mm | |
| Output voltage DC | 24 to 28.8 VDC | |
| Depth | 125 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Sustainable | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
