18870 | Schneider Electric

Circuit breaker, 2 pole, MA characteristic, 10 A, 440 V (AC), screw connection, DIN rail, IP20, 18870

Order No.: 01P2696
EAN: 3303430188704
MPN:
18870
Series: NG125
18870 Schneider Electric Device Circuit Breakers

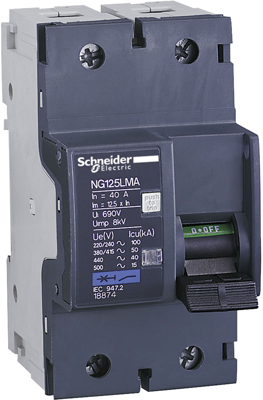

Image may differ
Unit Price (€ / pc.)
152.9388 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
152.94 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
152.9388 €

Device circuit breaker, 18870, SCHNEIDER

The 18870 is a low voltage circuit breaker. It is a 2P circuit breaker with 2 protected poles and 10 A in rated current and MA tripping curve. The rated short circuit breaking capacity goes up to 100 kA at 220 VAC to 240 VAC conforming to EN/IEC 60947-2 standard. This miniature circuit breaker protects circuits against short circuit and overload current. It is suitable for isolation in the industrial sector.

The fault tripping is indicated by a red mechanical state indicator light on the front face of the circuit breaker. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure.

Features

  • Trip unit technology Magnetic
  • High breaking capacity
  • ON/OFF trip indicator
  • Overvoltage category IV
  • Protection of the circuit against short-circuit currents
Technical specifications
Filter Property Value
Pin number 2 pole
Actuator toggle actuator
Degree of protection (IP) IP20
Rated current 10 A
Rated voltage (AC) 440 V
Connection screw connection
Tripping characteristics MA
Type of mounting DIN rail
Product type circuit breaker
Logistics
Property Value
Customs tariff number 85362010
Country of origin FR
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
