18654 | Schneider Electric

Circuit breaker, 4 pole, C characteristic, 40 A, 500 V (DC), 440 V (AC), screw connection, DIN rail, IP20, 18654

Order No.: 01P2522
EAN: 3303430186540
MPN:
18654
Series: NG125

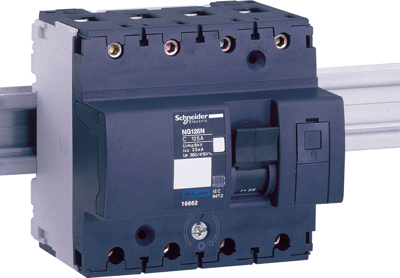

18654 Schneider Electric Device Circuit Breakers
Image may differ
Unit Price (€ / pc.)
313.0176 € *
Available in 3 Days: 12 pcs. - if ordered today
Total Price:
313.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
313.0176 €

Device circuit breaker, 18654, SCHNEIDER

The 18654 is a low voltage circuit breaker. It is a 4P circuit breaker with 4 protected poles and 40 A in rated current and C tripping curve. The rated short circuit breaking capacity goes up to 25 kA at 380 VAC to 415 VAC conforming to EN/IEC 60947-2 standard. This miniature circuit breaker protects circuits against short circuit and overload current. It is suitable for isolation in the industrial sector.

The fault tripping is indicated by a red mechanical state indicator light on the front face of the circuit breaker. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure.

Features

  • Thermal-magnetic
  • High breaking capacity
  • ON/OFF trip indicator
  • Overvoltage category IV
  • Protection of the circuit against short-circuit currents
Technical specifications
Filter Property Value
Connection screw connection
Product type circuit breaker
Degree of protection (IP) IP20
Pin number 4 pole
Rated voltage (DC) 500 V
Type of mounting DIN rail
Actuator toggle actuator
Rated voltage (AC) 440 V
Tripping characteristics C
Rated current 40 A
Logistics
Property Value
Customs tariff number 85362010
Country of origin FR
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
