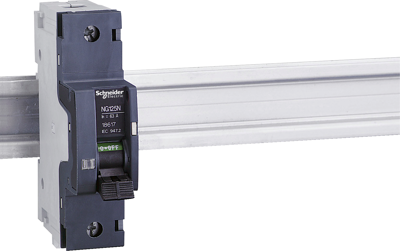

18615 | Schneider Electric
Circuit breaker, 1 pole, C characteristic, 40 A, 125 V (DC), 240 V (AC), screw connection, DIN rail, IP20, 18615
Unit Price (€ / pc.)
74.3274 € *
Standard delivery time from the manufacturer is: 2 Weeks
Device circuit breaker, 18615, SCHNEIDER
The 18615 is a low voltage circuit breaker. It is a 1P circuit breaker with 1 protected pole and 40 A in rated current and C tripping curve. The rated short circuit breaking capacity goes up to 25 kA at 220 VAC to 240 VAC conforming to EN/IEC 60947-2 standard. This miniature circuit breaker protects circuits against short circuit and overload current. It is suitable for isolation in the industrial sector.
The fault tripping is indicated by a red mechanical state indicator light on the front face of the circuit breaker. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure.
Features
- Thermal-magnetic
- High breaking capacity
- ON/OFF trip indicator
- Overvoltage category IV
- Protection of the circuit against short-circuit currents
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 240 V | |
| Rated current | 40 A | |
| Tripping characteristics | C | |
| Type of mounting | DIN rail | |
| Connection | screw connection | |
| Degree of protection (IP) | IP20 | |
| Actuator | toggle actuator | |
| Product type | circuit breaker | |
| Pin number | 1 pole | |
| Rated voltage (DC) | 125 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
