RXM4AB2BDPVM | Schneider Electric
Coupling relay 4 Form C (NO/NC), 24 V (DC), 650 Ω, 6 A, 250 V (AC), RXM4AB2BDPVM
Order No.: 06P7302
EAN: 4099891587772
MPN:
RXM4AB2BDPVM
Unit Price (€ / pc.)
33.9864 € *
Available: 9 pcs.
Total Price:
33.99 € *
Price list
Quantity
Price per unit*
1 pcs.
33.9864 €
3 pcs.
32.5108 €
5 pcs.
30.7258 €
10 pcs.
29.1312 €
*incl. VAT plus shipping costs
Subject to prior sale

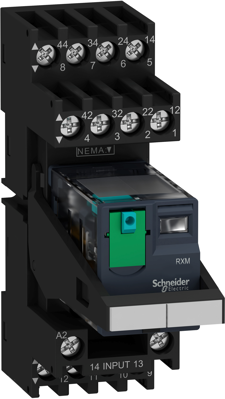

Miniature plug-in relay, RXM4AB2BDPVM, Schneider Electric
This miniature plug-in relay is a pre-assembled relay mounted on a mixed contact terminal socket with integrated clamp and legend. This is a 6A, 24Vdc, 4 CO miniature mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. It also offers one-step lockable test button and LED indicator. The miniature relay socket connection is by screw connector or screw clamp terminal type.
Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls.
Features
- Fit to customer needs, coverage of most general control panel applications
- Convenient to use, easy status readiness trough mechanical indicator & LED; one-step lockable test button
- Safe to perform, product reliability, compliance with industrial standard and eco-design
- Easy to use
Technical specifications
| LED display | Yes | |
| Connection | screw connection | |
| Product type | coupling relay | |
| Coil resistance | 650 Ω | |
| Contact material | AgNi | |
| Status display | LED | |
| Coil voltage (DC) | 24 V | |
| Contact type | 4 Form C (NO/NC) | |
| Degree of protection (IP) | IP20 | |
| Rated current | 6 A | |
| Rated voltage (AC) | 250 V |
Download
Logistics
| Customs tariff number | 85364190 |
| Country of origin | ID |
Compliance
| SVHC free | Yes |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
