RXG22P7 | Schneider Electric

Interface relay 2 Form C (NO/NC), 230 V (AC), 23500 Ω, 5 A, 230 V (AC), RXG22P7

Order No.: 06N4667
EAN: 3606480689147
MPN:
RXG22P7
Series: Zelio Relay RXG

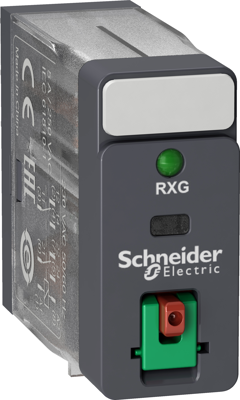

RXG22P7 Schneider Electric Coupling Relays
Image may differ
Unit Price (€ / pc.)
9.9722 € *
Available in 3 Days: 282 pcs. - if ordered today
Total Price:
9.97 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.9722 €

Pluggable interface relay, RXG22P7, Schneider Electric

Pluggable interface relay in 13 mm width for mounting in the plug-in socket by means of robust flat pins. Two relay changers can be loaded up to 5 A each. Mechanical display of the switch position and LED display of the control unit visible in the front. Test lever and test button can be operated without tools to test the switchover or for inching operation. Transparent side cover for visual inspection of the contact.

Technical data

  • Width: 13 mm
  • Height:
  • 34 mm
  • Protection class (IP):  IP40
Technical specifications
Filter Property Value
Connection plug-in connection
Coil resistance 23500 Ω
Product type interface relay
Degree of protection (IP) IP40
Contact type 2 Form C (NO/NC)
Coil voltage (AC) 230 V
Contact material silver
Rated voltage (AC) 230 V
Status display LED
Rated current 5 A
Logistics
Property Value
Customs tariff number 85364900
Country of origin CN
Compliance
Property Value
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
