RSL1PRPU | Schneider Electric
Interface relay 1 Form C (NO/NC), 20500 Ω, 6 A, 60 V (DC), RSL1PRPU
Unit Price (€ / pc.)
17.1479 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
17.15 € *
Price list
Quantity
Price per unit*
1 pcs.
17.1479 €
3 pcs.
16.3863 €
5 pcs.
15.6842 €
10 pcs.
14.8393 €
*incl. VAT plus shipping costs
Subject to prior sale

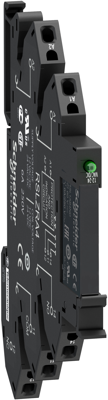

Narrow interface relay, RSL1PRPU, Schneider Electric
Pre-assembled and directly mountable narrow interface relay RSL in plug-in socket RSLZRA with width 6.2 mm. The changeover contact switches up to 6 A. The socket contains an LED to indicate the control state, a lever for easy removal of the relay and a protection module. The line connections are made via spring-loaded terminals. In addition, comb rails RSLZ2 can be plugged in for easy forwarding of potentials.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 6 A | |
| Status display | LED | |
| Coil resistance | 20500 Ω | |
| Contact type | 1 Form C (NO/NC) | |
| Connection | spring-clamp connection | |
| Degree of protection (IP) | IP40 | |
| Product type | interface relay | |
| Contact material | silver | |
| Rated voltage (DC) | 60 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
