RSB1A120BD | Schneider Electric
Interface relay 1 Form C (NO/NC), 1440 Ω, 12 A, 24 V (DC), RSB1A120BD
Unit Price (€ / pc.)
10.3768 € *
Available: 3 pcs.
Available in 3 Days: 60 pcs. - if ordered today
Total Price:
10.38 € *
Price list
Quantity
Price per unit*
1 pcs.
10.3768 €
5 pcs.
9.9127 €
10 pcs.
9.4843 €
15 pcs.
8.9726 €
*incl. VAT plus shipping costs
Subject to prior sale

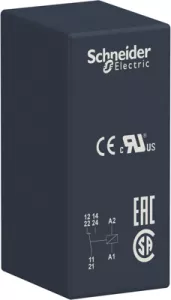

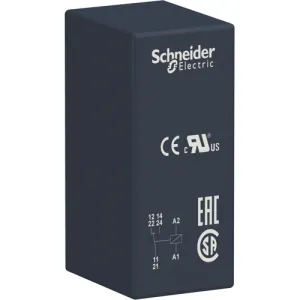

Interfacing plug-in relay, RSB1A120BD, Schneider Electric
This Zelio RSB interfacing plug-in relay has a control coil voltage of 24V DC and has 1 changeover contact single pole double throw with a rating of 12A. It helps to reduce the size of enclosures and increases machine reliability: you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 12 A | |
| Coil resistance | 1440 Ω | |
| Contact type | 1 Form C (NO/NC) | |
| Connection | plug-in connection | |
| Degree of protection (IP) | IP20 | |
| Product type | interface relay | |
| Contact material | AgNi | |
| Rated voltage (DC) | 24 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| Substance description | Hexahydromethylphthalic anhydride |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
