ZBRP1 | Schneider Electric
Cable-operated switch, 1 rope pull switch, ZBRP1
Unit Price (€ / pc.)
99.6506 € *
Available in 3 Days: 138 pcs. - if ordered today
Total Price:
99.65 € *
Price list
Quantity
Price per unit*
1 pcs.
99.6506 €
2 pcs.
97.0921 €
3 pcs.
94.6645 €
*incl. VAT plus shipping costs
Subject to prior sale

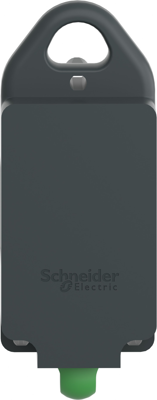

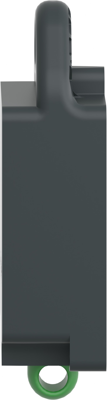

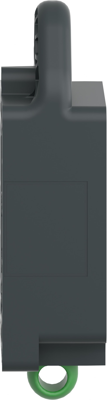

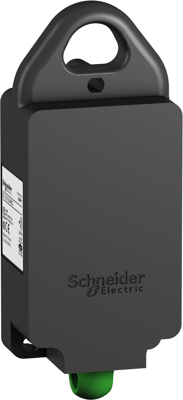

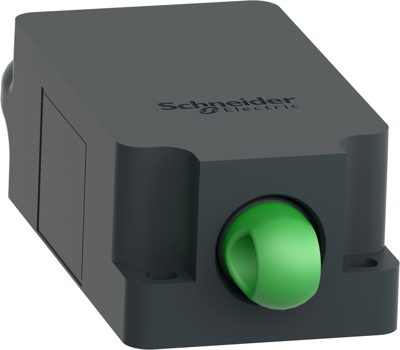

Rope pull switch, ZBRP1, Schneider Electric
This rope pull switch is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a rope pull switch with wireless and batteryless transmitter. Its pulling force is from 45N to 1000N. The rope pull switch is adapted for automatic doors. It sends a radio message to the receiver in the control panel to open and close the door. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It weighs 150g.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
- Excellent mechanical connection with operator head
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Shell size | 56 x 38 x 143 mm | |
| Degree of protection (IP) | IP65 | |
| Version | 1 rope pull switch |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85269200 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
