XACA49141 | Schneider Electric
Pendant pushbutton, 4 pushbutton, 1 emergency stop/emergency off button, 8 Form A (N/O) + 7 Form B (N/C), XACA49141
Unit Price (€ / pc.)
199.6225 € *
Available in 3 Days: 1 pcs. - if ordered today

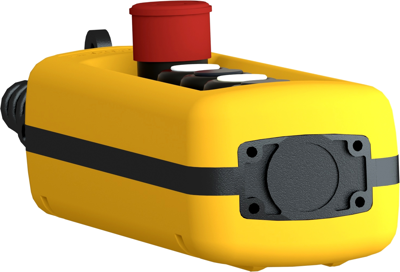

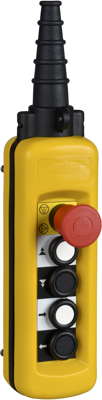

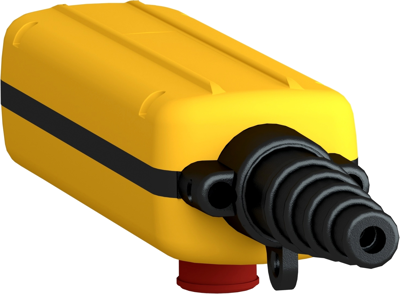

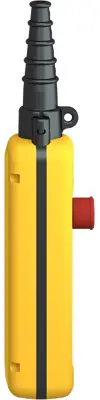

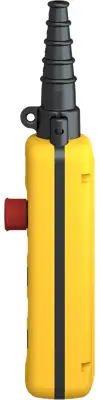

Pendant control station, XACA49141, Schneider Electric
This Harmony XACA49141 is a pendant control station with 4 push buttons and Emergency stop for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | yellow | |
| Shell size | 107 x 80 x 250 mm | |
| Degree of protection (IP) | IP65 | |
| Latching switching function | 8 Form A (N/O) + 7 Form B (N/C) | |
| Version | 4 pushbutton, 1 emergency stop/emergency off button |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| Substance description | Lead |
