XACA4812 | Schneider Electric
Pendant pushbutton, 4 pushbutton, 1 emergency stop button, 4 Form A (N/O) + 5 Form B (N/C), XACA4812
Unit Price (€ / pc.)
171.8122 € *
Standard delivery time from the manufacturer is: 2 Weeks

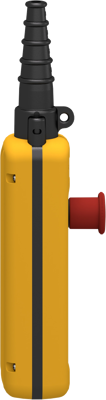

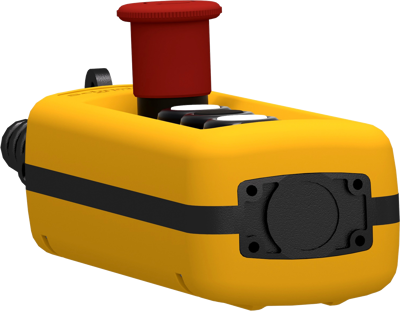

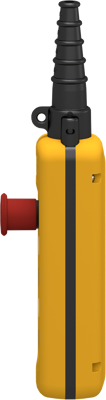

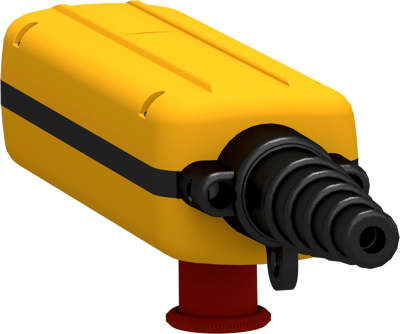

Pendant control station, XACA4812, Schneider Electric
This Harmony XACA4812 is a pendant control station with 4 push buttons and Emergency stop for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | yellow | |
| Latching switching function | 4 Form A (N/O) + 5 Form B (N/C) | |
| Shell size | 70 x 80 x 250 mm | |
| Degree of protection (IP) | IP65 | |
| Version | 4 pushbutton, 1 emergency stop button |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
