XACA481 | Schneider Electric
Pendant pushbutton, 4 pushbutton, 4 Form A (N/O) + 4 Form B (N/C), XACA481
Unit Price (€ / pc.)
138.2661 € *
Standard delivery time from the manufacturer is: 1 Week

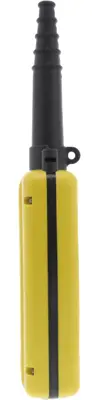

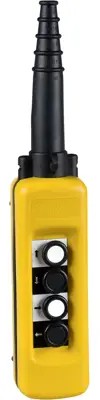

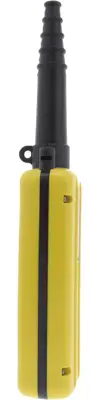

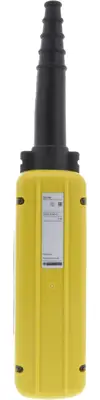

Pendant control station, XACA481, Schneider Electric
This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed motors. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a polypropylène enclosure with 4 standard push buttons mechanically interlocked between pairs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 4 Form A (N/O) + 4 Form B (N/C) | |
| Colour | yellow | |
| Degree of protection (IP) | IP65 | |
| Version | 4 pushbutton | |
| Shell size | 107 x 80 x 250 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
