XACA2134 | Schneider Electric
Pendant pushbutton, 2 pushbutton with protective cap, 1 emergency stop/emergency off button, 4 Form A (N/O) + 1 Form B (N/C), XACA2134
Unit Price (€ / pc.)
79.5991 € *
Available in 3 Days: 14 pcs. - if ordered today

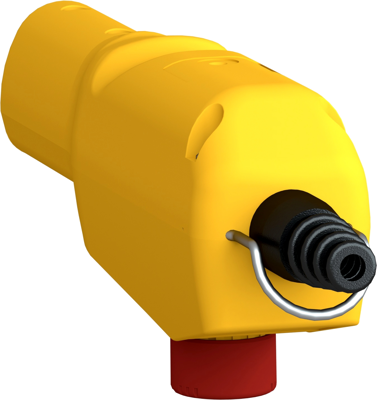

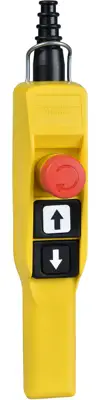

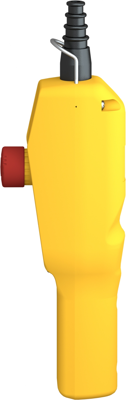

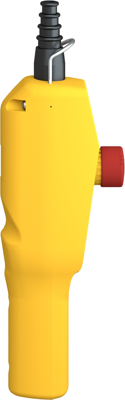

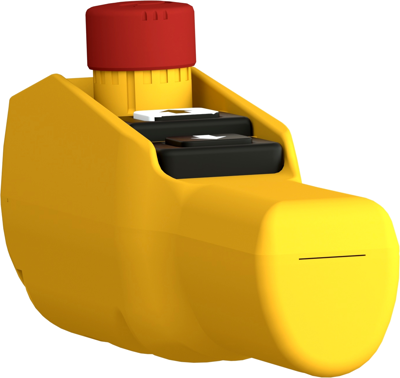

Pendant control station, XACA2134, Schneider Electric
This Harmony XACA2134 is a pendant station pistol grip with 2 booted push buttons and Emergency stop for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | yellow | |
| Latching switching function | 4 Form A (N/O) + 1 Form B (N/C) | |
| Degree of protection (IP) | IP65 | |
| Version | 2 pushbutton with protective cap, 1 emergency stop/emergency off button | |
| Shell size | 101 x 52 x 295 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Sustainable | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
