LP5K0901BW3 | Schneider Electric
Reversing contactor, 3 pole, 9 A, 3 Form A (N/O), coil 24 VDC, screw connection, LP5K0901BW3
Unit Price (€ / pc.)
104.8628 € *
Standard delivery time from the manufacturer is: 1 Week

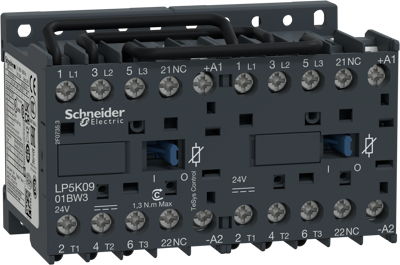

Reversing contactor combination, LP5K0901BW3, Schneider Electric
TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides low consumption 24V DC coils with transient suppressor module, 2NC built-in auxiliary contacts, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Technical specifications
| rated voltage (AC) | 440 V | |
| Degree of protection (IP) | IP20 | |
| Assembly | DIN rail/screw | |
| Rated current | 9 A | |
| Control Voltage | 24 VDC | |
| Pin number | 3 pole | |
| Version | reversing contactor | |
| Connection | screw connection | |
| Latching switching function | 3 Form A (N/O) |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85364190 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Sustainable | Yes |
