LP2K0601BDTQ | Schneider Electric

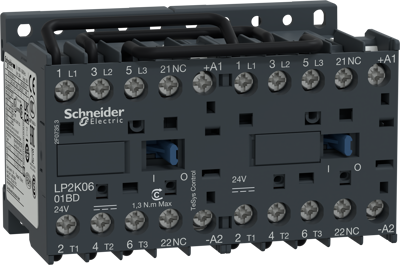

Reversing contactor, 3 pole, 6 A, 400 V, 3 Form A (N/O), coil 24 VDC, screw connection, LP2K0601BDTQ
Order No.: 03P4037
EAN: 3389110497014
MPN:
LP2K0601BDTQ
Unit Price (€ / pc.)
78.6471 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
78.65 € *
Price list
Quantity
Price per unit*
1 pcs.
78.6471 €
2 pcs.
76.6241 €
3 pcs.
74.7082 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 6 A | |
| Assembly | DIN rail/screw | |
| Latching switching function | 3 Form A (N/O) | |
| Connection | screw connection | |
| Degree of protection (IP) | IP20 | |
| Control Voltage | 24 VDC | |
| Pin number | 3 pole | |
| Version | reversing contactor | |
| Rated Voltage | 400 V | |
| rated voltage (AC) | 440 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
