LP1K0610BDTQ | Schneider Electric
Power contactor, 3 pole, 6 A, 400 V, 3 Form A (N/O), coil 24 VDC, screw connection, LP1K0610BDTQ
Unit Price (€ / pc.)
34.4862 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
34.49 € *
Price list
Quantity
Price per unit*
1 pcs.
34.4862 €
3 pcs.
32.9868 €
5 pcs.
31.1780 €
10 pcs.
29.5596 €
*incl. VAT plus shipping costs
Subject to prior sale

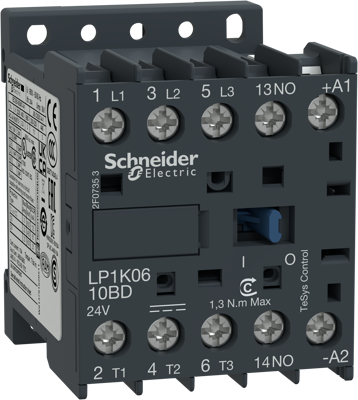

Power contactor, LP1K0610BDTQ, Schneider Electric
TeSys K contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides a 24V DC coil, 1NO built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Pack of 30 units. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| rated voltage (AC) | 440 V | |
| Degree of protection (IP) | IP2X | |
| Assembly | DIN rail/screw | |
| Rated current | 6 A | |
| Control Voltage | 24 VDC | |
| Pin number | 3 pole | |
| Version | power contactor | |
| Connection | screw connection | |
| Rated Voltage | 400 V | |
| Latching switching function | 3 Form A (N/O) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85364190 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Sustainable | Yes |
