LC2K1201B7 | Schneider Electric
Reversing contactor, 3 pole, 12 A, 400 V, 3 Form A (N/O), coil 24 VAC, screw connection, LC2K1201B7
Unit Price (€ / pc.)
98.1512 € *
Standard delivery time from the manufacturer is: 1 Week

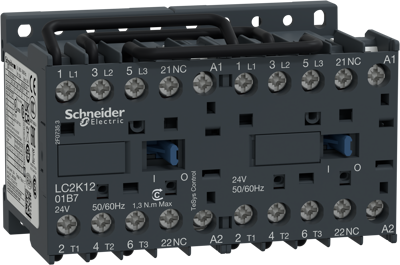

Reversing contactor combination, LC2K1201B7, Schneider Electric
TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V). It provides 24V 50/60Hz AC coils, 2NC built-in auxiliary contacts, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 3 Form A (N/O) | |
| Rated Voltage | 400 V | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP20 | |
| Rated current | 12 A | |
| Version | reversing contactor | |
| Connection | screw connection | |
| Assembly | DIN rail/screw | |
| rated voltage (AC) | 440 V | |
| Control Voltage | 24 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
