LC2D25EHE | Schneider Electric

Reversing contactor, 3 pole, 25 A, 400 V, 3 Form A (N/O), coil 48-130 V AC/DC, screw connection, LC2D25EHE

Order No.: 03P3048
EAN: 4099889385809
MPN:
LC2D25EHE
Series: TeSys D

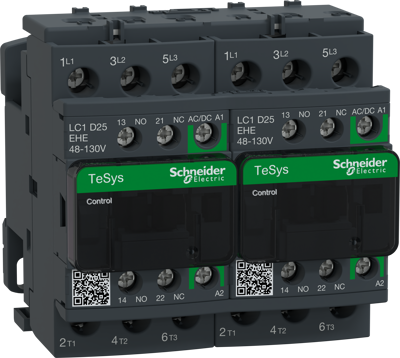

LC2D25EHE Schneider Electric Contactors
Image may differ
Unit Price (€ / pc.)
370.0305 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
370.03 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
370.0305 €

Reversing contactor combination, LC2D25EHE, Schneider Electric

TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3 (11kW@400V). It provides low consumption 48-130V AC/DC coils with electronic control, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications
rated voltage (AC) 440 V
Degree of protection (IP) IP20
Assembly DIN rail/screw
Rated current 25 A
Control Voltage 48-130 V AC/DC
Pin number 3 pole
Version reversing contactor
Connection screw connection
Rated Voltage 400 V
Latching switching function 3 Form A (N/O)
Logistics
Country of origin FR
Customs tariff number 85364900
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
Sustainable Yes
