LC2D150P7 | Schneider Electric
Reversing contactor, 3 pole, 150 A, 400 V, 3 Form A (N/O), coil 230 VAC, screw connection, LC2D150P7
Order No.: 03P2984
EAN: 3389110509656
MPN:
LC2D150P7
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1,564.0051 € *
Standard delivery time from the manufacturer is: 2 Weeks

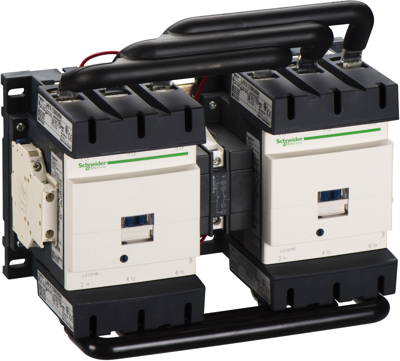

Reversing contactor combination, LC2D150P7, Schneider Electric
TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 150A/1000V AC-3 (75kW@400V). It provides 230V 50/60Hz AC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirrror certified), power connection by screw connectors 2 inputs, control by screw clamp terminals. For operating rates until 1200 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (266mm width), mounting on 2 DIN-rails or screw fixing. With pre-wired reversing power connections, mechanical and electrical interlock. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | reversing contactor | |
| Latching switching function | 3 Form A (N/O) | |
| Pin number | 3 pole | |
| Rated current | 150 A | |
| Rated Voltage | 400 V | |
| rated voltage (AC) | 440 V | |
| Control Voltage | 230 VAC | |
| Connection | screw connection | |
| Assembly | DIN rail/screw | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Sustainable | Yes |
| Substance description | Orange lead (lead tetroxide) | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
