LC1SKGC200E7 | Schneider Electric
Mini contactor, 2 pole, 5 A, 690 V, 2 Form A (N/O), coil 48 VAC, LC1SKGC200E7
Unit Price (€ / pc.)
32.4394 € *
Standard delivery time from the manufacturer is: 2 Weeks

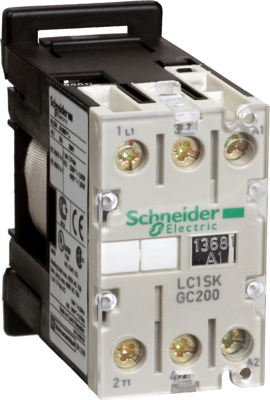

Installation contactor, LC1SKGC200E7, Schneider Electric
TeSys SKGC mini-contactor, 2 poles (2NO), for non-inductive load applications up to 20A/690V AC-1, and for 1-phase motor control applications up to 5A/690V AC-3. It provides a 48V 50/60Hz AC control circuit, a transparent protective cover to prevent front face access, connection by screw terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. For use in modular panels, compact (27mm width), clipping on 35mm DIN rail. Location available to insert a suppressor module LA4SK (to be ordered separately). Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 2 Form A (N/O) | |
| Rated Voltage | 690 V | |
| Pin number | 2 pole | |
| Degree of protection (IP) | IP2x | |
| Rated current | 5 A | |
| Version | mini contactor | |
| Assembly | DIN rail | |
| rated voltage (AC) | 400 V | |
| Control Voltage | 48 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
