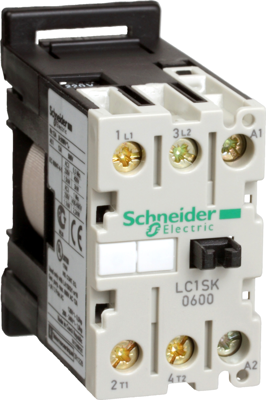

LC1SK0600U7 | Schneider Electric
Mini contactor, 2 pole, 6 A, 400 V, 2 Form A (N/O), coil 240 VAC, screw connection, LC1SK0600U7
Unit Price (€ / pc.)
31.297 € *
Standard delivery time from the manufacturer is: 2 Weeks
Power contactor, LC1SK0600U7, Schneider Electric
TeSys SK mini-contactor, 2 poles (2NO), for non inductive load applications up to 12A/690V AC-1, and for 1-phase motor control applications up to 6A/690V AC-3 (for 3-phase motors an add-on contact block LA1SK must be mounted on contactor). It provides a 240V 50/60Hz AC control circuit, connection by screw clamp terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Add-on contact blocks LA1SK (power pole, instantaneous auxiliary contacts) and suppressor modules LA4SK available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 2 Form A (N/O) | |
| Rated Voltage | 400 V | |
| Pin number | 2 pole | |
| Degree of protection (IP) | IP2X | |
| Rated current | 6 A | |
| Version | mini contactor | |
| Connection | screw connection | |
| Assembly | DIN rail/screw | |
| rated voltage (AC) | 440 V | |
| Control Voltage | 240 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
