LC1K090043E7 | Schneider Electric
Power contactor, 4 pole, 20 A, 4 Form A (N/O), coil 48 VAC, spring-clamp connection, LC1K090043E7
Unit Price (€ / pc.)
35.9142 € *
Standard delivery time from the manufacturer is: 2 Weeks

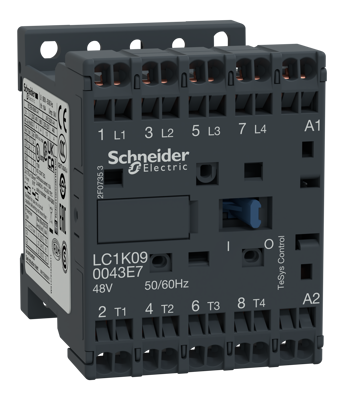

Power contactor, LC1K090043E7, Schneider Electric
TeSys K contactor, 4 poles (4NO), for non-inductive load control applications up to 10A/690V AC-1. It provides a 48V 50/60Hz AC coil, without built-in auxiliary contact, connection by spring terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 4 Form A (N/O) | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP2X | |
| Rated current | 20 A | |
| Version | power contactor | |
| Connection | spring-clamp connection | |
| Assembly | DIN rail/screw | |
| rated voltage (AC) | 440 V | |
| Control Voltage | 48 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
