LC1K0601P72 | Schneider Electric
Power contactor, 3 pole, 6 A, 400 V, 3 Form A (N/O), coil 230 VAC, screw connection, LC1K0601P72
Unit Price (€ / pc.)
32.8797 € *
Available in 3 Days: 1,995 pcs. - if ordered today

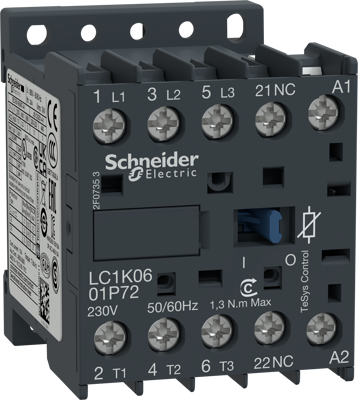

Power contactor, LC1K0601P72, Schneider Electric
TeSys K contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides a 230V 50/60Hz AC coil with transient suppressor module, 1NC built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 6 A | |
| Assembly | DIN rail/screw | |
| Latching switching function | 3 Form A (N/O) | |
| Connection | screw connection | |
| Degree of protection (IP) | IP2X | |
| Control Voltage | 230 VAC | |
| Pin number | 3 pole | |
| Version | power contactor | |
| Rated Voltage | 400 V | |
| rated voltage (AC) | 440 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
