LC1DT40D7 | Schneider Electric
Power contactor, 4 pole, 40 A, 4 Form A (N/O), coil 42 VAC, screw connection, LC1DT40D7
Unit Price (€ / pc.)
95.7831 € *
Available: 0 pcs.
Leadtime: On Request **

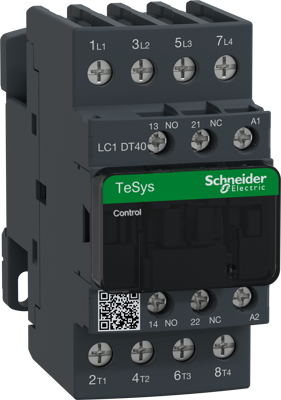

Power contactor, LC1DT40D7, Schneider Electric
TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 40A/690V AC-1. It provides a 42V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Connection | screw connection | |
| Version | power contactor | |
| rated voltage (AC) | 440 V | |
| Assembly | DIN rail/screw | |
| Rated current | 40 A | |
| Pin number | 4 pole | |
| Latching switching function | 4 Form A (N/O) | |
| Degree of protection (IP) | IP20 | |
| Control Voltage | 42 VAC |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85364190 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
