LC1DLKP7 | Schneider Electric

Capacitor contactor, 3 pole, 415 V, 3 Form A (N/O), coil 230 VAC, screw connection, LC1DLKP7

Order No.: 03P2136
EAN: 4099889380767
MPN:
LC1DLKP7
Series: TeSys D

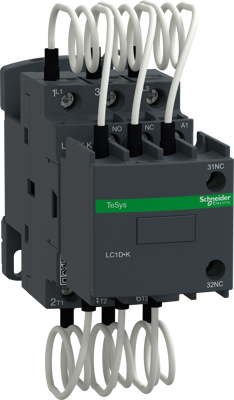

LC1DLKP7 Schneider Electric Contactors
Image may differ
Unit Price (€ / pc.)
131.6616 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
131.66 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
131.6616 €

Capacitor contactor, LC1DLKP7, Schneider Electric

TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 20kVAR@400V 50Hz (33kVAR@690V). It provides a 230V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Certified IEC 60947 and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).

Technical specifications
rated voltage (AC) 690 V
Assembly DIN rail/screw
Control Voltage 230 VAC
Pin number 3 pole
Version capacitor contactor
Connection screw connection
Rated Voltage 415 V
Latching switching function 3 Form A (N/O)
Logistics
Country of origin FR
Customs tariff number 85364900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
Sustainable Yes
