LC1DGKM7 | Schneider Electric
Contactor, 3 pole, 3 Form A (N/O), coil 200 VAC, screw connection, LC1DGKM7
Unit Price (€ / pc.)
108.8017 € *
Available: 0 pcs.
Leadtime: 1 Week **

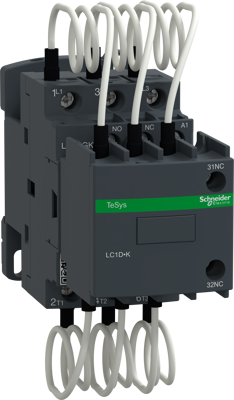

Capacitor contactor, LC1DGKM7, Schneider Electric
TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 16.7kVAR@400V 50Hz (28.5kVAR@690V). It provides a 220V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Certified IEC 60947 and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).
Technical specifications
| rated voltage (AC) | 690 V | |
| Assembly | DIN rail/screw | |
| Control Voltage | 200 VAC | |
| Pin number | 3 pole | |
| Version | contactor | |
| Connection | screw connection | |
| Latching switching function | 3 Form A (N/O) |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85364900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Sustainable | Yes |
