LC1D95FD | Schneider Electric

Power contactor, 3 pole, 95 A, 400 V, 3 Form A (N/O), coil 110 VDC, screw connection, LC1D95FD

Order No.: 03P2102
EAN: 4099889380538
MPN:
LC1D95FD
Series: TeSys LC1D
LC1D95FD Schneider Electric Contactors

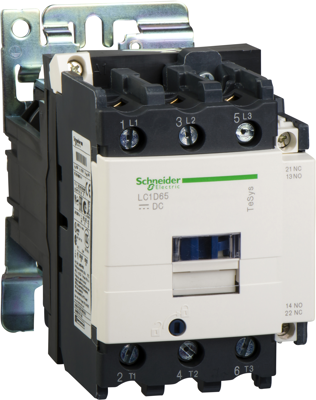

Image may differ
Unit Price (€ / pc.)
457.2575 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
457.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
457.2575 €

Power contactor, LC1D95FD, Schneider Electric

TeSys D contactor, 3 poles (3NO), for motor control applications up to 95A/1000V AC-3 (45kW@400V). It provides a 110V DC coil, 1NO+1NC built-in auxiliary contacts, power connection by screw terminals and control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications
rated voltage (AC) 440 V
Degree of protection (IP) IP20
Assembly DIN rail/screw
Rated current 95 A
Control Voltage 110 VDC
Pin number 3 pole
Version power contactor
Connection screw connection
Rated Voltage 400 V
Latching switching function 3 Form A (N/O)
Logistics
Country of origin CZ
Customs tariff number 85364900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
Sustainable Yes
