LC1D80MD | Schneider Electric

Power contactor, 3 pole, 80 A, 400 V, 3 Form A (N/O), coil 220 VDC, screw connection, LC1D80MD

Order No.: 03P2062
EAN: 4099889380262
MPN:
LC1D80MD
Series: TeSys LC1D

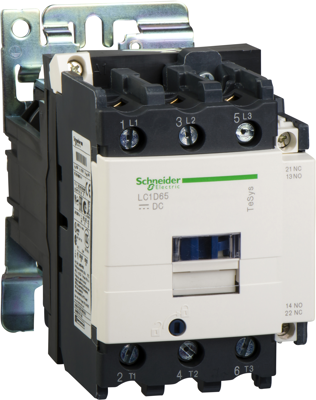

LC1D80MD Schneider Electric Contactors
Image may differ
Unit Price (€ / pc.)
410.7404 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
410.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
410.7404 €

Power contactor, LC1D80MD, Schneider Electric

TeSys D contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3 (37kW@400V). It provides a 220V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).

Technical specifications
rated voltage (AC) 440 V
Degree of protection (IP) IP20
Assembly DIN rail/screw
Rated current 80 A
Control Voltage 220 VDC
Pin number 3 pole
Version power contactor
Connection screw connection
Rated Voltage 400 V
Latching switching function 3 Form A (N/O)
Logistics
Country of origin CZ
Customs tariff number 85364900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
Sustainable Yes
