LC1D253P7 | Schneider Electric

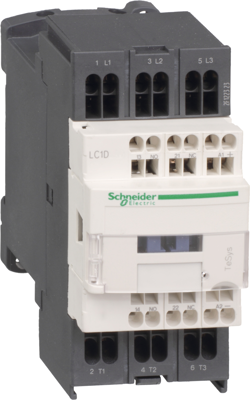

Power contactor, 3 pole, 25 A, 400 V, 3 Form A (N/O), coil 230 VAC, spring-clamp connection, LC1D253P7
Unit Price (€ / pc.)
81.4912 € *
Available: 0 pcs.
Leadtime: On Request **
Power contactor, LC1D253P7, Schneider Electric
TeSys D contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3 (11kW@400V). It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by spring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Connection | spring-clamp connection | |
| Version | power contactor | |
| rated voltage (AC) | 440 V | |
| Rated Voltage | 400 V | |
| Assembly | DIN rail/screw | |
| Rated current | 25 A | |
| Pin number | 3 pole | |
| Latching switching function | 3 Form A (N/O) | |
| Degree of protection (IP) | IP20 | |
| Control Voltage | 230 VAC |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
