LC1D128BD | Schneider Electric

Power contactor, 4 pole, 25 A, 2 Form A (N/O) + 2 Form B (N/C), coil 24 VDC, screw connection, LC1D128BD

Order No.: 03P1316

EAN: 4099889375077

MPN:

LC1D128BD

Series: TeSys LC1D

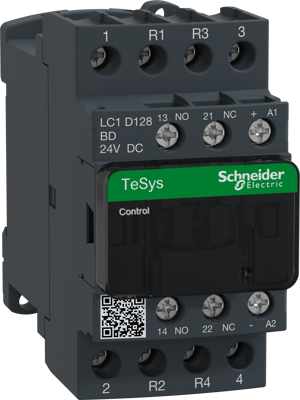

Image may differ

Key Specification:

Version power contactor

Latching switching function 2 Form A (N/O) + 2 Form B (N/C)

Pin number 4 pole

Rated current 25 A

Download Datasheet Technical specifications

As a private customer, you can buy this item as soon as we have it back in stock.

Description

Power contactor, LC1D128BD, Schneider Electric

TeSys D contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 25A/690V AC-1. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications

	rated voltage (AC)	440 V
	Degree of protection (IP)	IP20
	Assembly	DIN rail/screw
	Rated current	25 A
	Control Voltage	24 VDC
	Pin number	4 pole
	Version	power contactor
	Connection	screw connection
	Latching switching function	2 Form A (N/O) + 2 Form B (N/C)
