LC1D126ED | Schneider Electric
Power contactor, 3 pole, 12 A, 400 V, 3 Form A (N/O), coil 48 VDC, spring-clamp connection, LC1D126ED
Unit Price (€ / pc.)
88.6907 € *
Standard delivery time from the manufacturer is: 2 Weeks

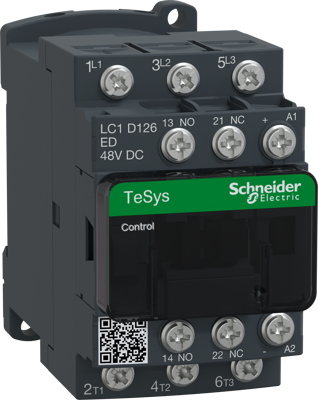

Power contactor, LC1D126ED, Schneider Electric
TeSys D contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V). It provides a 48V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by ring-lugs screw terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | spring-clamp connection | |
| Latching switching function | 3 Form A (N/O) | |
| Pin number | 3 pole | |
| rated voltage (AC) | 440 V | |
| Degree of protection (IP) | IP20 | |
| Assembly | DIN rail | |
| Rated Voltage | 400 V | |
| Version | power contactor | |
| Rated current | 12 A | |
| Control Voltage | 48 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85364190 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Sustainable | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
