LC1D115MD | Schneider Electric
Power contactor, 3 pole, 115 A, 400 V, 3 Form A (N/O), coil 220 VDC, screw connection, LC1D115MD
Unit Price (€ / pc.)
429.6614 € *
Standard delivery time from the manufacturer is: 1 Week

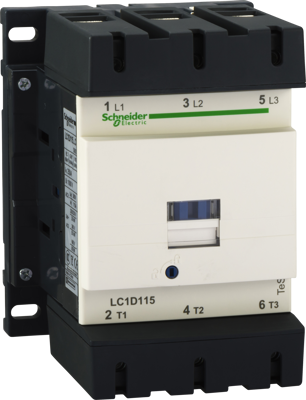

Power contactor, LC1D115MD, Schneider Electric
TeSys D contactor, 3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 220V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified), power connection by screw connectors 2 inputs, control connection by screw clamp terminals. For operating rates until 1200 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| rated voltage (AC) | 440 V | |
| Degree of protection (IP) | IP20 | |
| Assembly | DIN rail/screw | |
| Rated current | 115 A | |
| Control Voltage | 220 VDC | |
| Pin number | 3 pole | |
| Version | power contactor | |
| Connection | screw connection | |
| Rated Voltage | 400 V | |
| Latching switching function | 3 Form A (N/O) |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85364900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead, Orange lead [lead(II, IV)-oxide] |
| SVHC free | No |
| RoHS conform | Yes |
| Sustainable | Yes |
