LC1D09BD | Schneider Electric
Power contactor, 3 pole, 9 A, 690 V, 3 Form A (N/O), coil 24 VDC, screw connection, LC1D09BD
Unit Price (€ / pc.)
71.7451 € *
Available in 3 Days: 861 pcs. - if ordered today

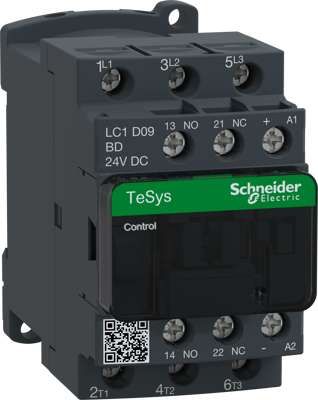

Power contactor, LC1D09BD, Schneider Electric
Standard contactors 0.06 -75 kW In addition to an attractive and functional design, the TeSys D contactors offer quick and easy installation with a narrow width of 45 or 55 mm. They meet international standards. The power ratings 40 to 65 A are equipped with EverLink terminals. These are patented and guarantee a reliable and durable connection.
Technical data
- Connection type main circuit: Screw connection
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as break contacts: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Latching switching function | 3 Form A (N/O) | |
| Pin number | 3 pole | |
| rated voltage (AC) | 440 V | |
| Degree of protection (IP) | IP20 | |
| Assembly | DIN rail/screw | |
| Rated Voltage | 690 V | |
| Version | power contactor | |
| Rated current | 9 A | |
| Control Voltage | 24 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Sustainable | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
